Our Power series are specially designed for the larger distributions. Due to their robust characteristics, they are very durable and can be used in most harsh conditions. We would like to explain the characteristics that make them so strong and high-quality.
POWERCUBES-160 | 800A
Art. no. V46.160.5.0006
Delivery time: approx. 6-8 weken
Polyethylene Stackable Distribution Box POWERCUBES-160
| Frame | Galvanized steel for V46.160.5 (1931x690x616mm) |
| Input | 2x PowerSyntax Panel 750A Drain (L1, L2, L3, N, A) |
| Main switch | 800A 4pole (with yellow/red handle) can be operated from the outside and can be locked in the OFF position |
| Output | 2x PowerSyntax Panel 400A Source (L1, L2, L3, N,A) |
| 3x CEE 400A 125A 5pole | |
| 3x CEE 400V 63A 5pole | |
| 2x CEE 400V 32A 5pole | |
| 3x CEE 230V 16A 3pole | |
| Circuit breakers | 2x MCCB (thermomagnetic) adjustable 320-400A 4pole 36kA |
| 3x RCCB 125A 4pole 300mA | |
| 3x MCB 125A 3pole+N C-char | |
| 3x RCD 63A 4pole 300mA | |
| 3x MCB 63A 3pole+Nul C-char | |
| 1x RCD 63A 4pole+N 30mA C-char | |
| 2 MCB 32A 3pole+N C-char | |
| 1x RCD 40A 4pole+N 30mA C-char | |
| 3x MCB 16A 1pole+N C-char |
Characteristics

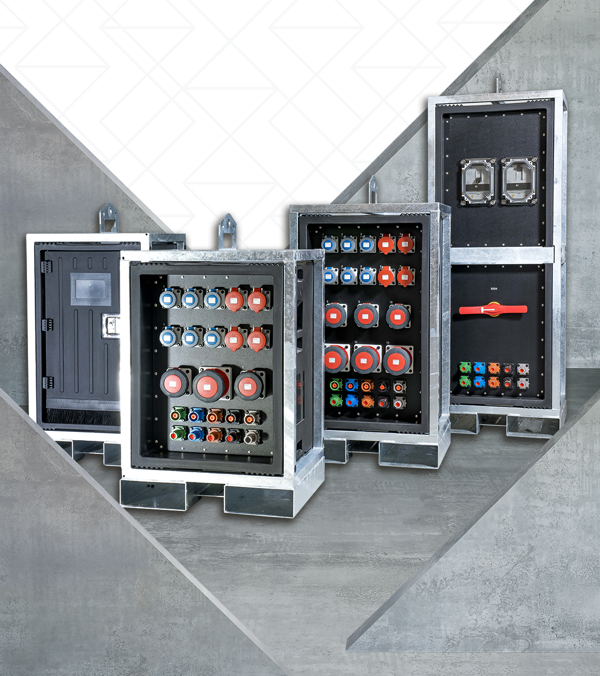

POWERCUBES-Series
highlighted
The unique characteristics of the Powercubes
- Equipped with lilfting eye
The boxes are easy to move thanks to the lifting eye. In addition, the frame is designed to make movement also possible by means of a forklift or hand pallet truck. - Different sides for plugs and protection
Uou can plug in connectors on one side, the circuit breakers are on the other. As a result, the distribution box is organaized in a clear an accessible manner. - Protected location of the components
Because the components are located within the frame, there is optimal protection against impact damage. - Stackable
Thanks to the smart design, the boxes are stackable.
All specifications
| Frame | Galvanized steel for V46.160.5 (1931x690x616mm) |
| Input | 2x PowerSyntax Panel 750A Drain (L1, L2, L3, N, A) |
| Main switch | 800A 4pole (with yellow/red handle) can be operated from the outside and can be locked in the OFF position |
| Output | 2x PowerSyntax Panel 400A Source (L1, L2, L3, N,A) |
| 3x CEE 400A 125A 5pole | |
| 3x CEE 400V 63A 5pole | |
| 2x CEE 400V 32A 5pole | |
| 3x CEE 230V 16A 3pole | |
| Circuit breakers | 2x MCCB (thermomagnetic) adjustable 320-400A 4pole 36kA |
| 3x RCCB 125A 4pole 300mA | |
| 3x MCB 125A 3pole+N C-char | |
| 3x RCD 63A 4pole 300mA | |
| 3x MCB 63A 3pole+Nul C-char | |
| 1x RCD 63A 4pole+N 30mA C-char | |
| 2 MCB 32A 3pole+N C-char | |
| 1x RCD 40A 4pole+N 30mA C-char | |
| 3x MCB 16A 1pole+N C-char | |
| CE conform |
|
| Dimensions | 616 x 690 x 1931 mm (l x w x h) |
| Weight | ca. 213 kg |
| Protection degree | IP44 |
| Impact resistance | IK10 |
| Appliance class |
Klasse II
|
| Stackable | Yes |
| Handles | Yes |
| Lifting eye | Yes |
| RDF | 0,9 |
| Intrastat-code | 85371098 |
