Defender XXL

Art. no. ADA85500

Delivery time: In stock

5-channel cable protector

Length 780 mm
Width 696 mm
Height 87 mm
No. of channels 5 channels:
60 mm x 59 mm / 62 mm x 63 mm
Weight 21,1 kg
Maximum load Approx. 5 tons per 25x30 cm

Additional products

85510 1

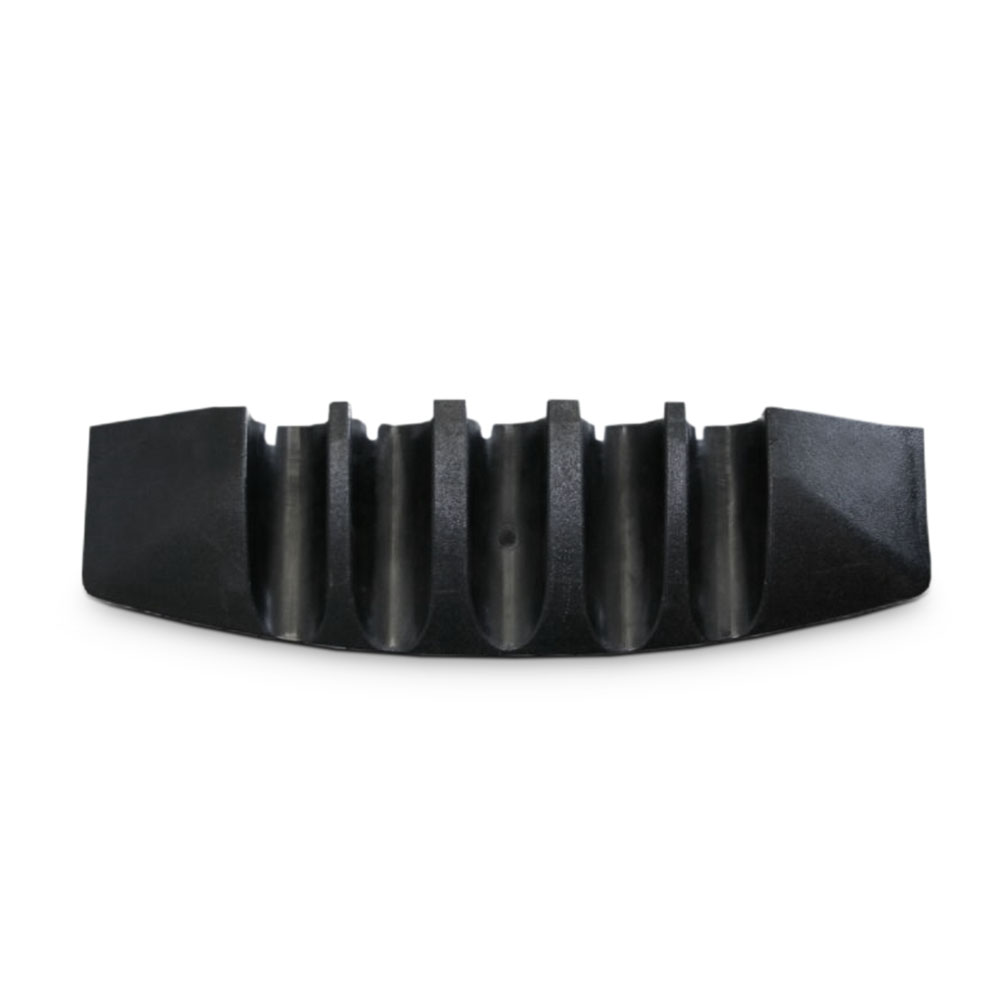

Defender XXL end ramp black

ADA85510

85504 1

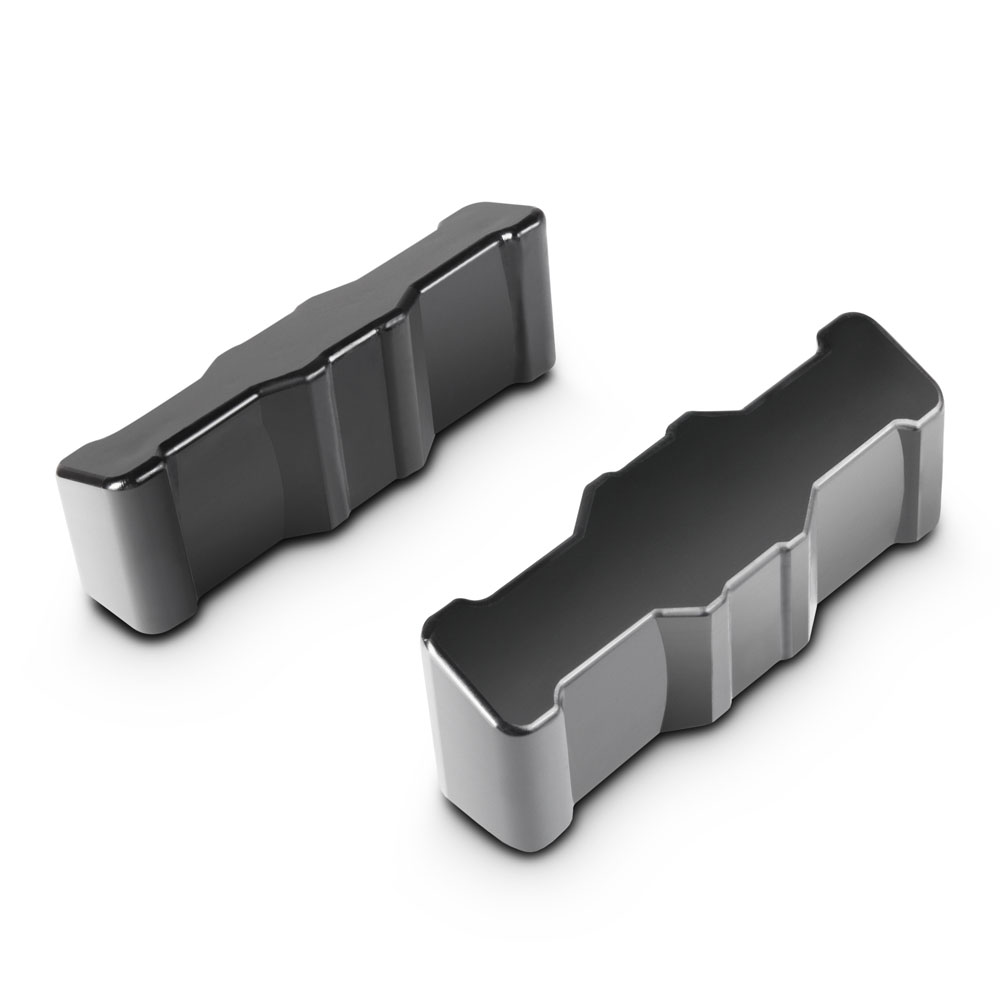

Defender XXL connector (2 pcs.) black

ADA85504

ADAM HALL BIJGESNEDEN

Cable protector

Defender XXL

The Adam Hall cable protectors are strong and the large amount of types and accessories (including 45° and 90° bends and end ramps) make them suited for many applications. This makes it easy to reconfigure the setup for every occasion.

We are pleased to point out it's unique characteristics.

Adam Hall Defender-series

The best cable protection everywhere

Festivals, events, industry and construction...

Endless applications. Protecting both cables and people.

Wide range of application

The Defender cable protectors can be applied in many areas. They protect the cables, protect people against falling and create a safer environment.

High load bearing capacity

Easily withstands car traffic, the larger models can even handle heavier truck traffic.

All specifications

Length 780 mm
Width 696 mm
Height 87 mm
No. of channels 5 channels: 60 mm x 59 mm / 62 mm x 63 mm
Weight 21,1 kg
Maximum load Approx. 5 tons per 25x30 cm
Material TPU (Thermoplastic Polyurethane)
Resistant to oil, petrol, most acids
Temperature range van - 30° tot +50° C
Shore A hardness 88 ± 4
Fire rating B2
