Defender Mini

Part. no. ADA85200

Delivery time: In stock

3-channel cable protector

Length 1000 mm
Width 290 mm
Height 48 mm
No. of channels 3x ø35mm
Weight 5 kg
Maximum load approx. 2 ton per 20x20 cm

Additional products

85208F 1

Defender Mini end ramp female black

ADA85208F

85208M 1

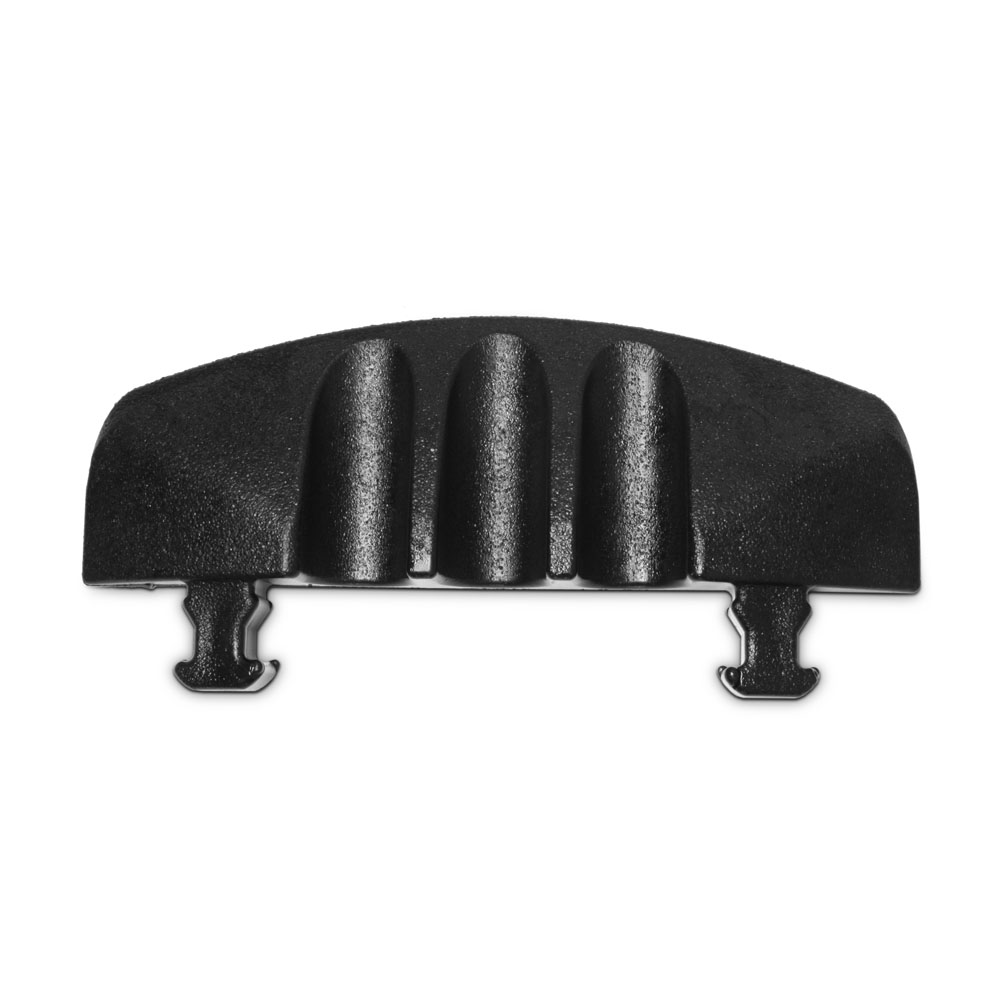

Defender Mini end ramp male black

ADA85208m

85210L 1

Defender Mini curve 45° black left

ADA85210L

85210R 1

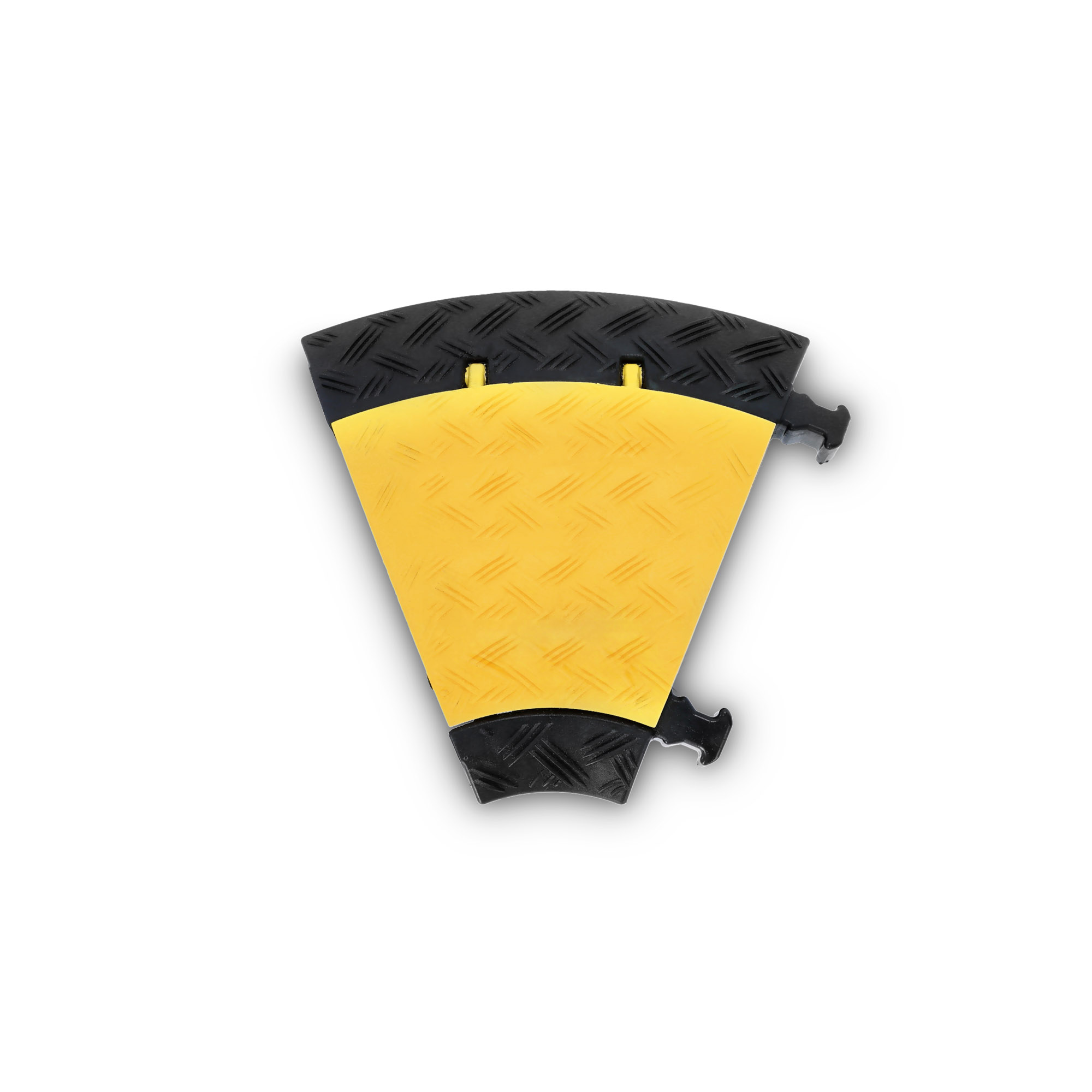

Defender Mini curbe 45° black right

ADA85210R

ADAM HALL BIJGESNEDEN

Cable protector

Defender Mini

The Adam Hall cable protectors are strong and the large amount of types and accessories (including 45° and 90° bends and end ramps) make them suited for many applications. This makes it easy to reconfigure the setup for every occasion.

We are pleased to point out it's unique characteristics.

Adam Hall Defender series

The best cable protection everywhere

High load bearing capacity

Easily withstands car traffic, the larger models can even handle heavier truck traffic.

Wide range of application

The Defender cable protectors can be applied in many areas. They protect the cables, protect people against falling and create a safer environment.

Festivals, events, industry and construction...

Endless applications. Protecting both cables and people.

All specifications

Length 1000 mm
Width 290 mm
Height 48 mm
No. of channels 3x ø35mm
Weight 5 kg
Maximum load approx. 2 ton per 20x20 cm
Material TPU (Thermoplastic Polyurethane)
Resistant to oil, petrol, most acids
Temperature range from - 30° to +60° C
Shore A hardness 88 ± 4
Fire rating B2 (B1 also available)
