Defender 3

Art. no. ADA85002

Delivery time: In stock

3-channel cable protector

Length 1005 mm
Width 607 mm
Height 75 mm
No. of channels 3 channels
45 x 50 mm / 52 x 49 mm
Weight 23,5 kg
Maximum load Approx. 5 tons per 25x30 cm

Additional products

85008 1

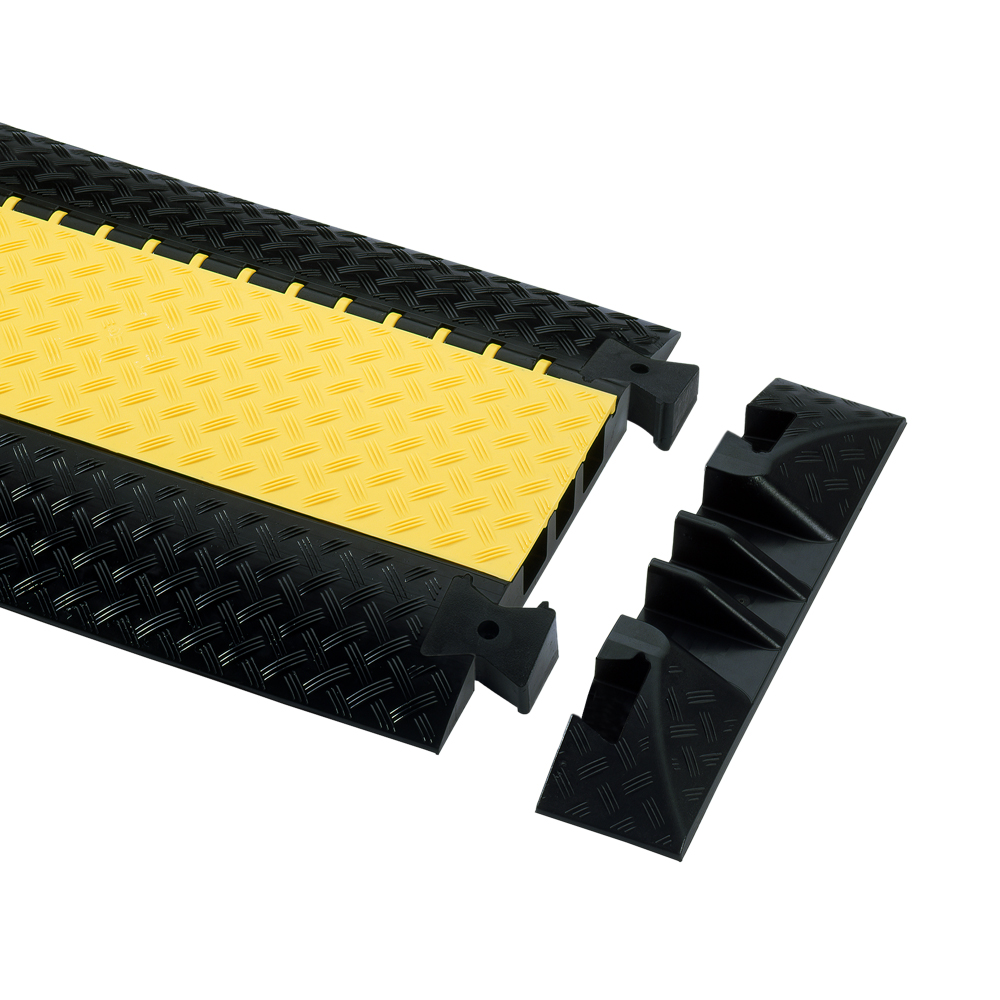

Defender 3 end ramp black incl. 2 connector pieces

ADA85008

85004 1

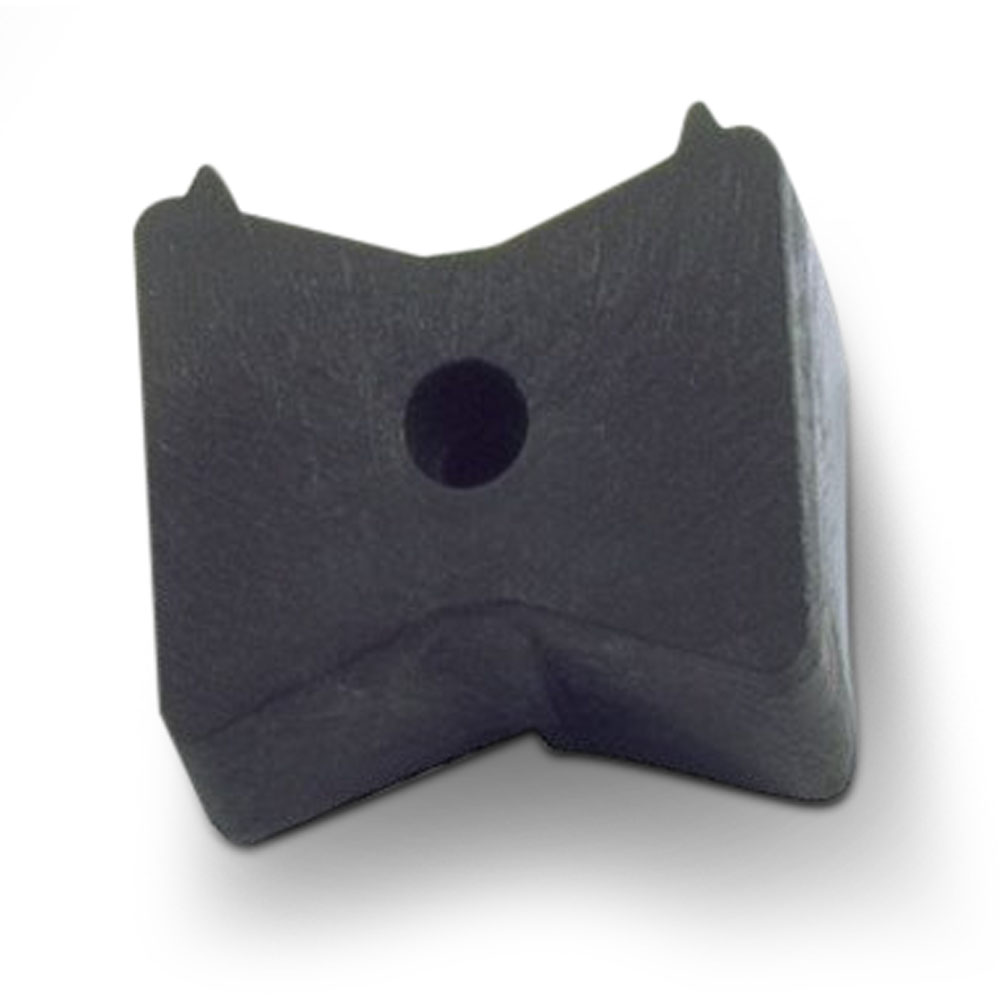

Defender 3 connector black (one piece!)

ADA85004

85009 1

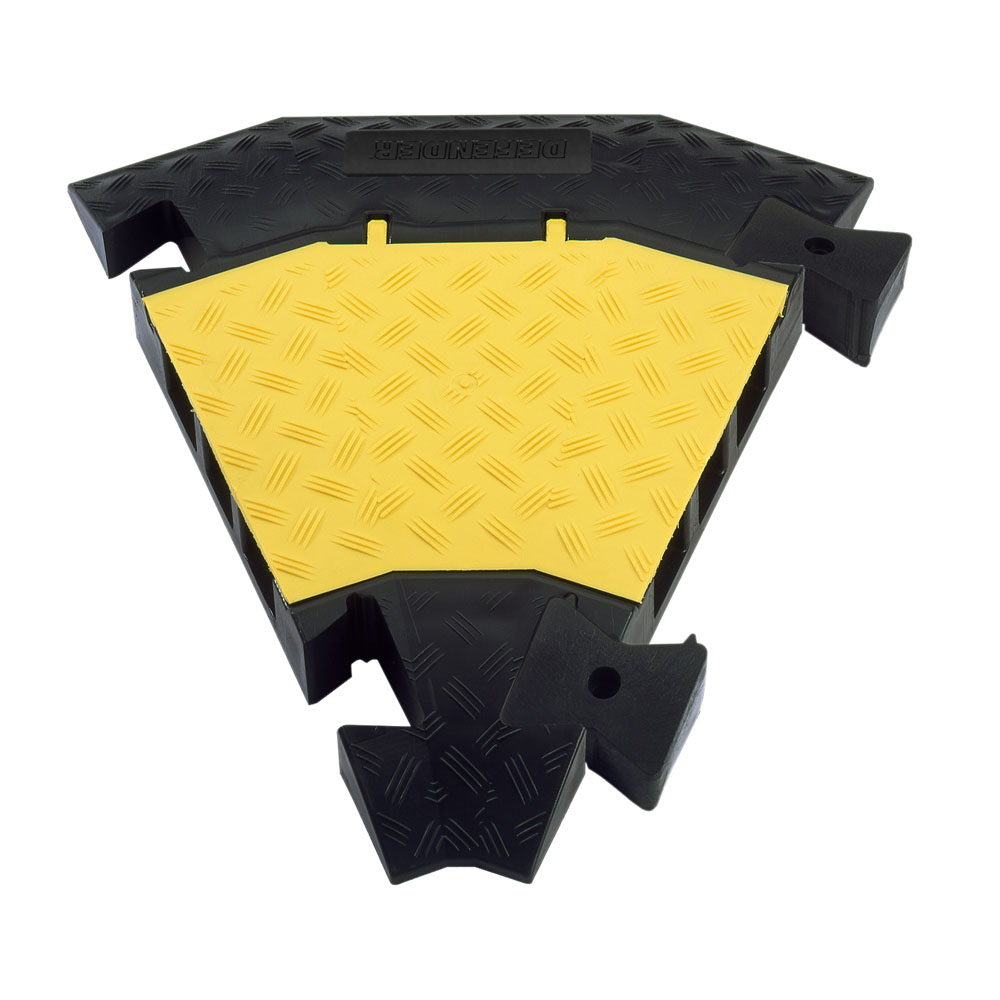

Defender 3 45° curve

ADA85009

ADAM HALL BIJGESNEDEN

Cable protector

Defender 3

The Adam Hall cable protectors are strong and the large amount of types and accessories (including 45° and 90° bends and end ramps) make them suited for many applications. This makes it easy to reconfigure the setup for every occasion.

We are pleased to point out it's unique characteristics.

Adam Hall Defender series

The best cable protection everywhere

High load bearing capacity

Easily withstands car traffic, the larger models can even handle heavier truck traffic.

Wide range of application

The Defender cable protectors can be applied in many areas. They protect the cables, protect people against falling and create a safer environment.

Festivals, events, industry and construction...

Endless applications. Protecting both cables and people.

All specifications

Length 1005 mm
Width 607 mm
Height 75 mm
No. of channels 3 channels 45 x 50 mm / 52 x 49 mm
Weight 23,5 kg
Maximum load Approx. 5 tons per 25x30 cm
Material TPU (Thermoplastic Polyurethane)
Resistant to oil, petrol, most acids
Temperature range from - 30° to +75° C
Shore A hardness 88 ± 4
Fire rating B2
